Six product groups documented in the current profile cover distribution, lighting, motor control, source transfer, power-factor correction and verified assemblies.
The profile lists MDB capability up to 6300 A. Final ratings depend on configuration, design verification, the single-line diagram and project requirements.
Main Distribution Board
Sub-Main Distribution Board
Final Distribution Board
Images show representative assemblies. Components, ratings and internal separation are defined against each project’s approved drawings and specifications.
01MDB, SMDB and DB assemblies for distribution, isolation, protection and monitoring; the current profile lists MDB capability up to 6300 A, subject to configuration and design verification.
02Organized protection and control for internal and external lighting circuits, with optional controls.
03Centralized motor operation, protection and control for pumps, fans, HVAC and production equipment.
04ATS and MTS panels for controlled transfer between utility, generator and other approved sources.
05Fixed or automatic power-factor correction solutions selected after load and harmonic assessment.

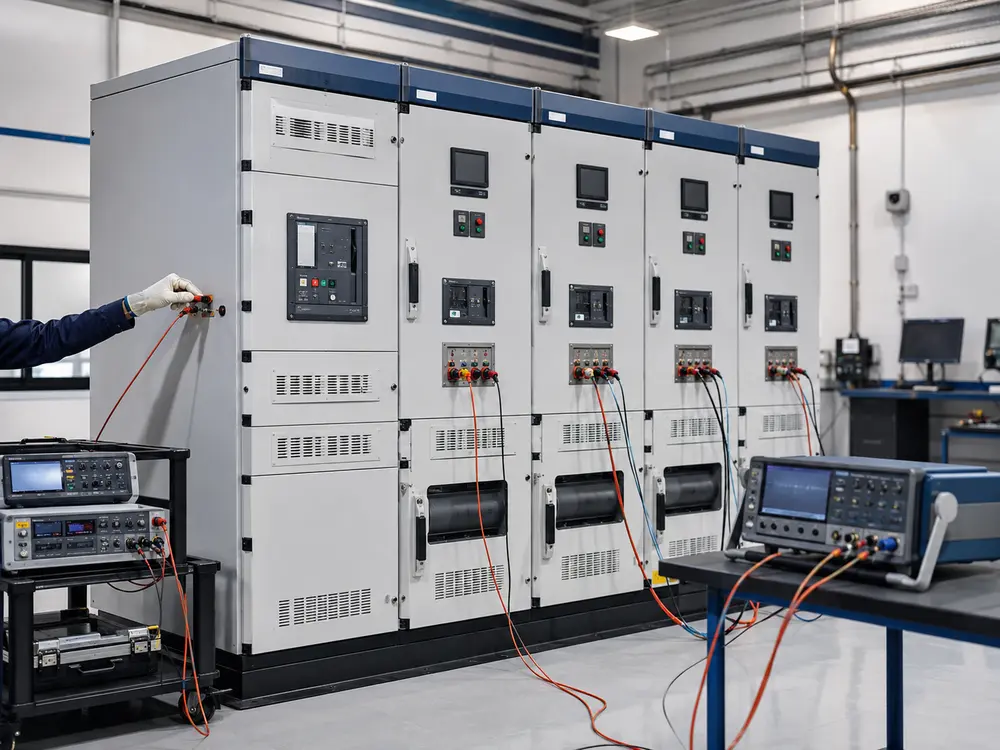

06Configuration-specific design-verification evidence and technical documentation reviewed per project.
